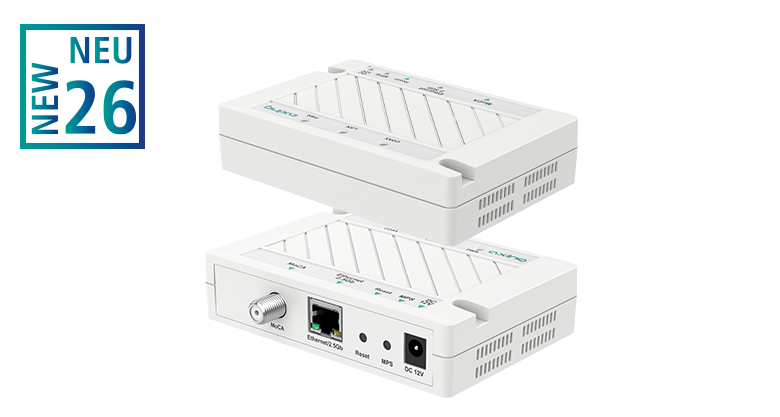

MoCA 2.5 – Extend High-Speed Ethernet over Existing Coax
Achieves speeds of up to 2.5 Gbps without requiring any new network cabling. This allows the existing infrastructure to continue being used efficiently.
Modern fiber connections often terminate in the basement or utility room. Bringing this bandwidth to living areas, home offices or upper floors can become challenging. AXING MoCA adapters use the existing coaxial infrastructure to extend Ethernet connectivity throughout the building — delivering up to 2.5 Gbps without installing new network cables.
Available Devices:
Benefits at a Glance:
-
Up to 2.5 Gbps Data Throughput
High-speed Ethernet transport over existing coaxial infrastructure. -
Reuse Existing Coax Cabling
Avoid costly Ethernet installations and disruptive renovation work. -
Plug-and-Play Installation
Fast deployment without complex configuration. -
Connect up to 16 Devices
Build flexible MoCA networks across multiple rooms and floors.
Typical applications
AXING Application Note MoCA operates in the 1,125–1,675 MHz frequency range and therefore cannot, in principle, be combined with satellite reception. However, if television is no longer a priority in the age of streaming services and live internet TV, the existing satellite TV distribution system can be used for MoCA. To do this, as shown […]
A fibre-optic connection offers very high internet speeds – unfortunately, these often only reach as far as the connection point in the basement. In this application note, we show how MoCA adapters can be used to bring the internet into living and working spaces.
Why MoCA?
-
Designed for High-Speed Ethernet
MoCA operates in the 1125–1675 MHz frequency range and is optimized specifically for Ethernet transport over existing coaxial infrastructure. -
Reliable Performance
Up to 2.5 Gbps PHY data rate with support for up to 16 devices within the same coax network. -
Secure Communication
AES 128-bit encryption protects data transmission across the coax infrastructure.
