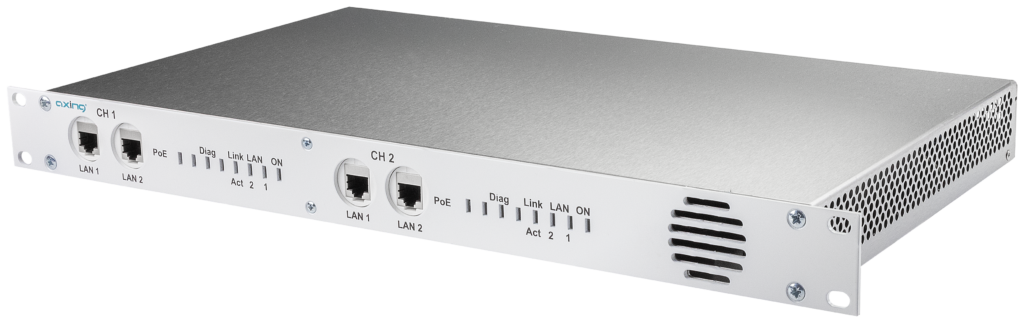

Ethernet over Coax devices in 19″ housing
The EoC Dual Master is now also available in the frequently requested 19-inch housing. This facilitates integration into professional IT systems. The system is available as EOC 30-29 for 32 end devices or as EOC 30-49 for two clusters with 32 end devices each.
The EOC master is connected to the Internet via Gigabit Ethernet. Using the G.hn standard, the EoC devices set up an encrypted Ethernet-over-Coax network via the coaxial cable of the TV cabling (TV and radio are of course still transmitted).
The EOC 30-xx use the return channel range from 5 to 204 MHz and achieve a net data rate of 1800 Mbps* (PHY) due to the bandwidth.
All settings (including those of the WiFi) are made at the master. The highest possible security is achieved for the users through security-oriented administration with encryption of the signals and access protection.
Available devices:
Available Endpoints:
Benefits at a glance:
-
EOC 30-29 for one RF cluster with max. 32 endpoints
-
EOC 30-49 for two separate RF clusters with max. 32 endpoints each
-
Data transmission range 5…204 MHz
-
Net data rate 1800 Mbps (PHY)
-
Incl. build-in switching power supply
